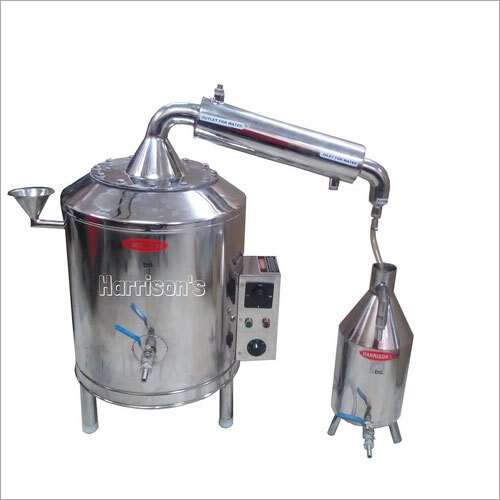

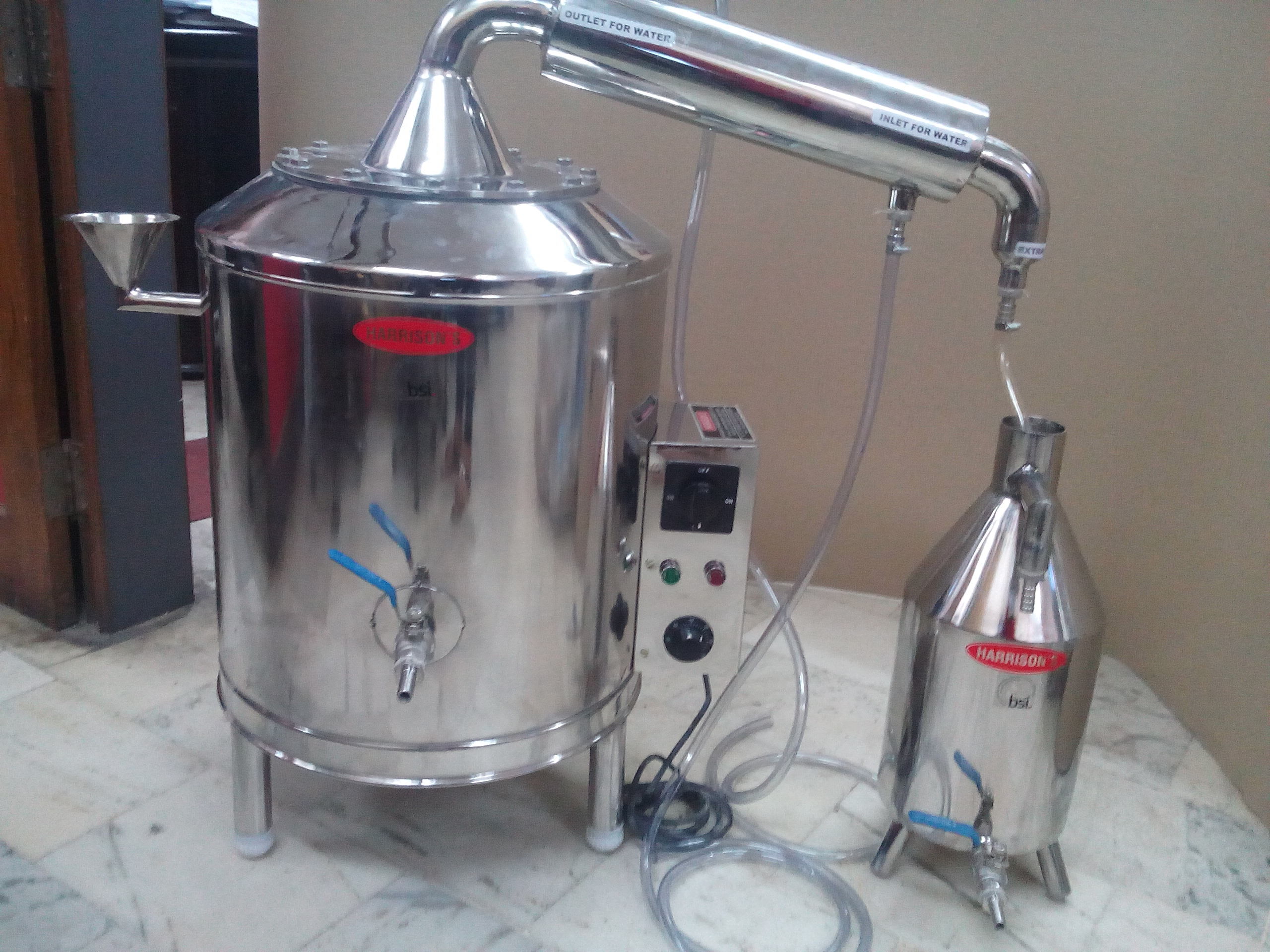

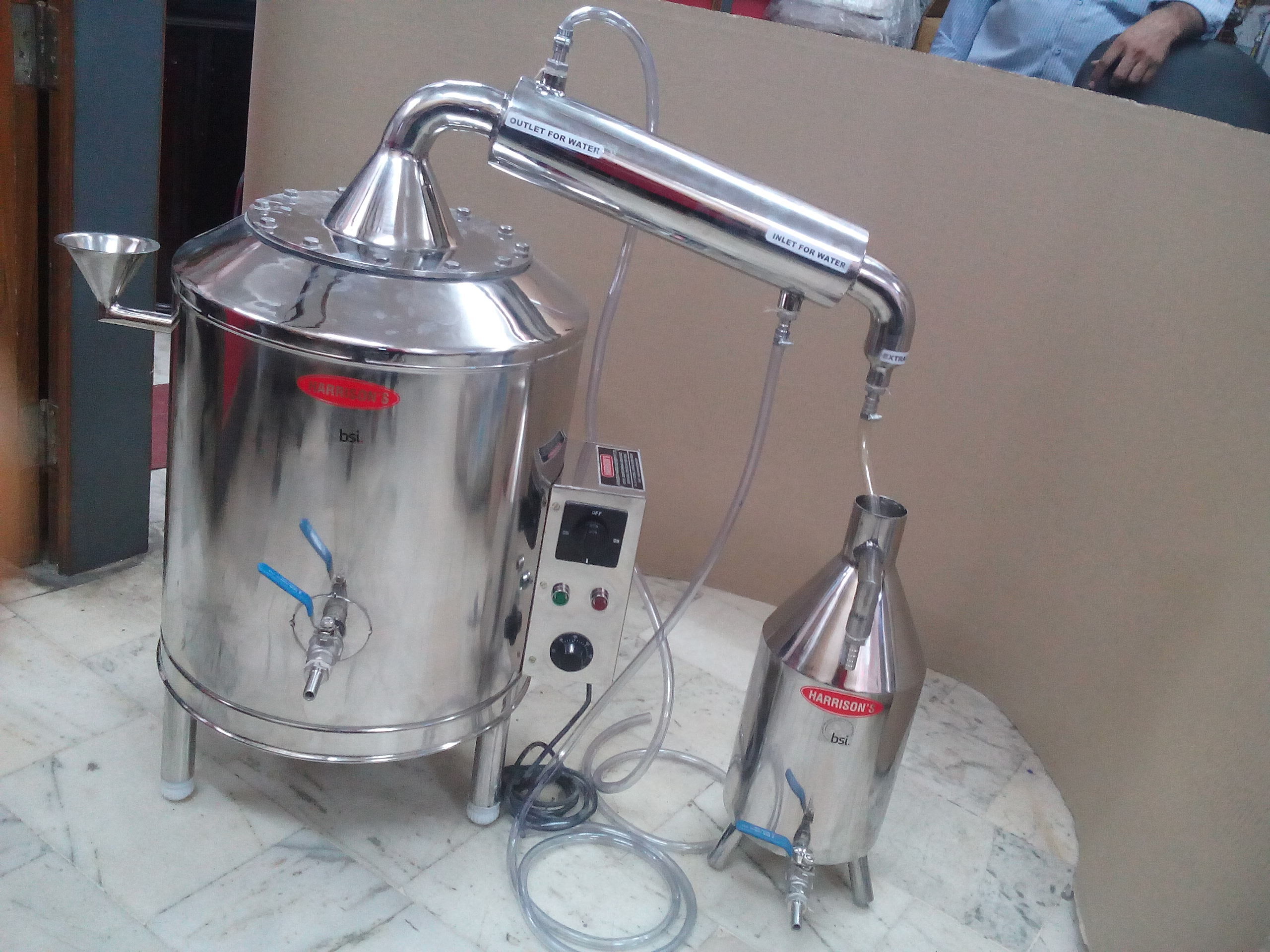

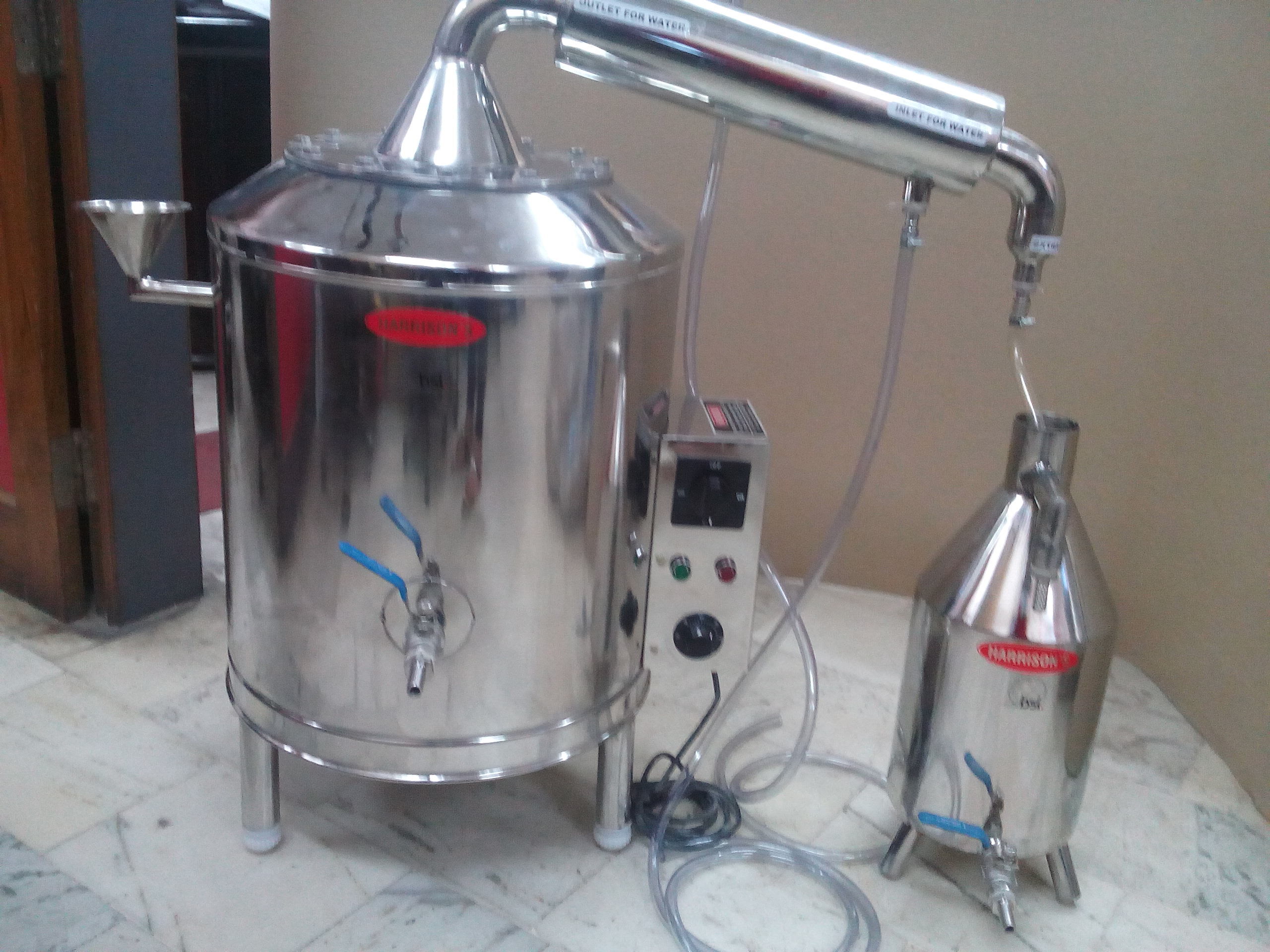

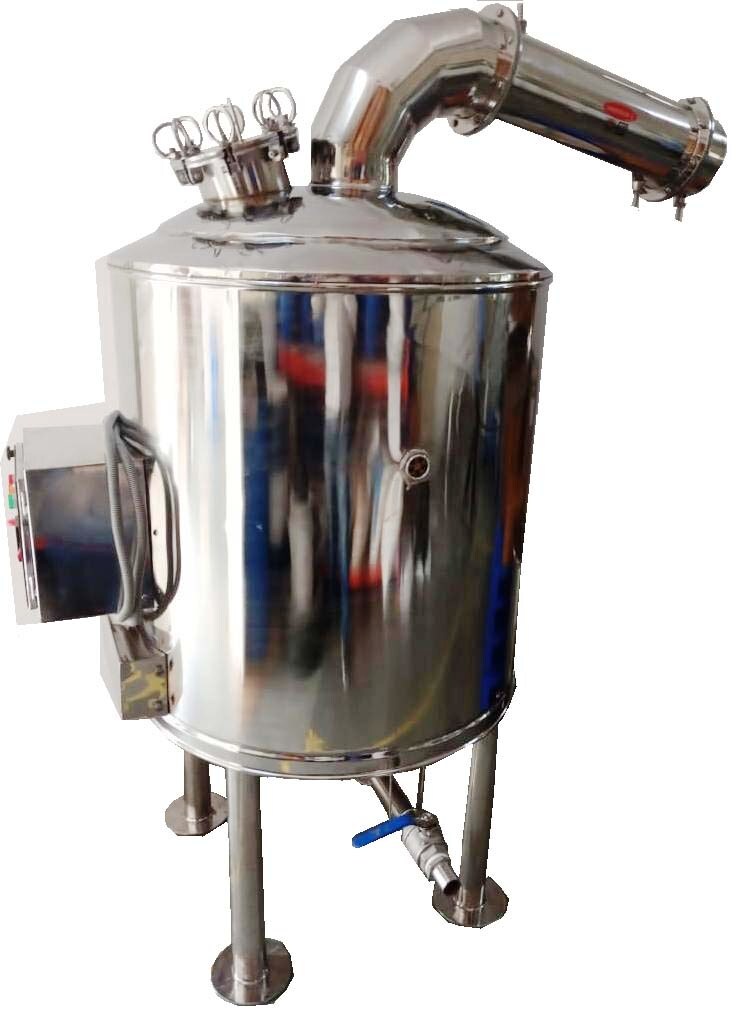

The whole unit consists of three parts:
- Main Vessel: Tripple walled consisting of inner vessel which is a pressure vessel made of
- 304 quality, Stainless Steel with solvent storage at the bottom with removable S.S sieve in the middle to hold crude herbal drug.
- Connecting Pipes: The upper lid is connected through S.S pipe to a condensing unit all
- & Connecting unit made of S.S. The S.S. condenser outlet tube is connected to a valve, which is connecting to the solvent collecting unit.
- Solvent collecting: The other two way size of the valve at the end of the condensing unit made of unit 304 quality stainless steel is further connected to the collecting vessel through S.S. pipe. The collecting vessel is closed type fitted on S.S stand with S.S. ball valve for removal of collected condensed solvent.
25 Ltrs to 500 Ltrs.
